Key features of Winlog

Winlog Evo vs Winlog Pro

Winlog SCADA software is available in the basic version Winlog Pro and in the advanced version Winlog Evo, more suited for Industry 4.0 applications.

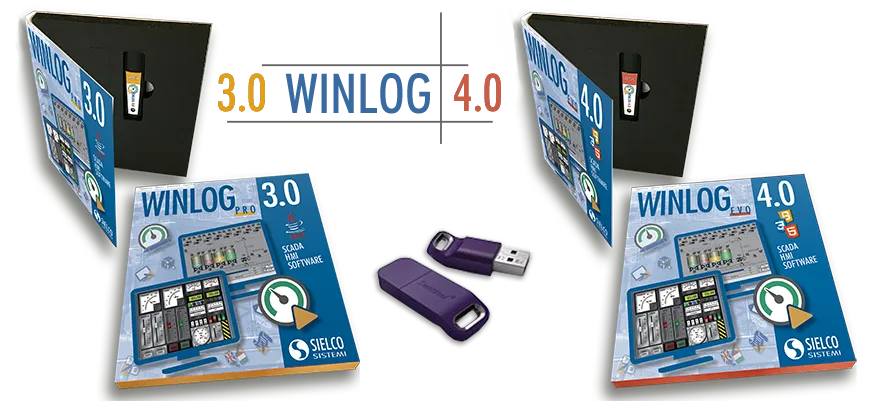

Packages and protection keys for Winlog pro and evo scada software

The two versions have a similar structure and user interface, but differ in terms of performance and types of licenses.

The table below highlights the differences between the two versions in terms of performance.


Feature Winlog Pro 3.0 Winlog Evo 4.0
Multi-Language support
Library of graphic symbols for Automation Ver. 2.5 Ver. 3.0
Library of animated objects for Automation
Support for vector graphics WMF SVG
Application Builder (Smart Device Library)
Client Communication Protocols (RS485, Ethernet)
Client OPC Protocols DA DA, UA
Sharing Protocols (OPC UA Server, Modbus Server)
IoT Protocols (MQTT 3)
Client/Server Communication Protocol
Historical and Online Graphic Trends
Historical and Online Alarms
Reports recorded on file (CSV, PDF)
Reports recorded on external DB (MySQL, …)
API to operate on external DB (MySQL, …)
Process Recipes Management
Authentication via LDAP Server
Access from Smartphones (Smart App) Ver. 1 Ver. 2
Access from Internet Browser (Web App) JAVA HTML5
Quick Support Remote Assistance
SecureBridge for remote access to PLC
Watchdog Realtime Monitor
Runtime License with Editor Option
Development License with Runtime Option

Winlog Pro licenses

Winlog Pro licenses are supplied with a case containing a protection key for USB port. It is possible to supply an unlicensed protection key and later program it remotely with the required license. It is also possible to remotely upgrade a license to a license with a higher number of tags.


Winlog Pro Development Licenses

Winlog Pro development licenses allow creation and running of both basic and web applications. Web applications have a web server support that allows access from smartphones or desktop PCs equipped with the Java Virtual Machine SE. Development licenses differ from each other only by the number of tags; development tools, communication protocols and other Winlog Pro functions are the same for all licenses. All development license include the libraries Symbol Factory (static graphic symbols) and Industrial Gadgets ActiveX (animated graphic objects).

  • W-NET/SS-USB+: Development license up to 32 TAG
  • W-NET/S-USB+: Development license up to 64 TAG
  • W-NET/S1-USB+: Development license up to 128 TAG
  • W-NET/I-USB+: Development license up to 256 TAG
  • W-NET/I1-USB+: Development license up to 512 TAG
  • W-NET/I2-USB+: Development license up to 1024 TAG
  • W-NET/M-USB+: Development license up to 2048 TAG
  • W-NET/X-USB+: Development license with unlimited TAG

Winlog Pro Runtime Licenses

Winlog Pro runtime licenses allow running of basic applications (without a web server support). Runtime licenses doesn’t allow you to modify the application by adding or removing sampled gates (tags).

  • W-R/SS-USB: Runtime license up to 32 TAG
  • W-R/S1-USB: Runtime license up to 128 TAG
  • W-R/X-USB: Runtime license with unlimited tags

Winlog Pro Runtime Licenses Web

Winlog Pro Web runtime licenses allow running of both simple and web applications. Web runtime licenses doesn’t allow you to modify the application by adding or removing sampled gates (tags).

  • W-RW/SS-USB: Web runtime license up to 32 TAG
  • W-RW/S1-USB: Web runtime license up to 128 TAG
  • W-RW/X-USB: Web runtime license with unlimited tags

Winlog Evo licenses

Winlog Evo licenses are supplied with a case containing a protection key for USB port. It is possible to supply an unlicensed protection key and later program it remotely with the required license. It is also possible to remotely upgrade a license to a license with a higher number of tags.


Winlog Evo without a license

You can freely download the demo version of Winlog Evo, that allows you to develop and run SCADA application with no limit on the number of tags and 120 minutes of full operation. After two hours, communication with external devices stops and you have to restart the application. To run an application without any time limit, you must first validate it with a development license and then run it with a runtime license.


Winlog Evo Development license

The development license is required to validate the applications developed with Winlog Evo SCADA software. Only a validated application can run with a runtime license. The development license makes also available the graphic library Industrial Gadgets ActiveX, with a multitude of animated objects: digital (buttons, switches, lights), analog (pointer indicators, potentiometers, LED displays) and complex (motors, pumps, valves, tanks, pipes).

  • W-EVO/DVX-USB: Development license with unlimited tags

Winlog Evo Runtime Licenses

Runtime licenses allow running of Winlog Evo applications previously validated with a W-EVO/DVX-USB development license; runtime licenses also allow you to modify the application (Editor option). Several runtime licenses are available, which differ only in the number of tags.

  • W-EVO/RTA-USB: Runtime license up to 32 TAG
  • W-EVO/RTB-USB: Runtime license up to 64 TAG
  • W-EVO/RTC-USB: Runtime license up to 128 TAG
  • W-EVO/RTD-USB: Runtime license up to 256 TAG
  • W-EVO/RTE-USB: Runtime license up to 512 TAG
  • W-EVO/RTF-USB: Runtime license up to 1024 TAG
  • W-EVO/RTG-USB: Runtime license up to 2048 TAG
  • W-EVO/RTH-USB: Runtime license up to 4096 TAG
  • W-EVO/RTI-USB: Runtime license up to 8192 TAG
  • W-EVO/RTX-USB: Runtime license with unlimited tags

ScaPc Bundle licenses

ScaPc is an all-Italian bundled kit between Haxteel Panel PCs and Sielco Sistemi Winlog Evo SCADA software. ScaPc consists of a Panel PC with pre-installed Winlog Evo SCADA software and a runtime license including all the features of the package.

A man designs a scada application for a panel pc
A man designs a scada application for a panel pc

Models

ScaPc is available with 5 different PC solutions, all completely fanless and equipped with RAM (4 GB), SSD (120 GB) and Windows 10 IoT:

  • PC 7.0” Wide
  • PC 10.1” Wide
  • PC 15.6” Wide
  • PC 18.5” Wide
  • PC 21.5” Wide

For further information refer to Haxteel

Licenses

ScaPC is available with 4 different runtime licenses:

  • W-EVO/RTA-USB: Runtime license up to 32 TAG
  • W-EVO/RTB-USB: Runtime license up to 64 TAG
  • W-EVO/RTC-USB: Runtime license up to 128 TAG
  • W-EVO/RTD-USB: Runtime license up to 256 TAG

You can freely download the demo version of Winlog Evo SCADA software from here.

Sales and Service

The ScaPc bundle is sold exclusively by Haxteel, either directly or through its sales network. Technical support and warranty on PCs are provided by Haxteel according to the its own rules.

The Winlog Evo development license is sold exclusively by Sielco Sistemi, either directly or through its sales network. Technical support on the development license is provided by Sielco Sistemi free of charge for the first 6 months and, subsequently, according to the technical assistance contract.
